Visual Regression Testing

by FND January 1, 2025

NB:

This article ended up being published via CSS-Tricks under a different title, improved thanks the editorial expertise of Geoff Graham. This draft version is archived here for historical purposes.

Comparing visual artifacts can be a powerful, if fickle, approach to automated testing. Playwright makes this seem simple, but the details might take a little finessing.

To my chagrin, prepitaph’s style sheet suffers from predictable issues: Those ~500 lines of organically grown CSS might not be chaotic, but they’ve still turned into a bit of a maintenance headache. So they’re overdue for some refactoring – especially with the advent of CSS nesting, plus we now have a good idea of our authoring components. More importantly, cleaner foundations should make it easier to introduce a dark mode so we finally respect users’ preferred color scheme.

Being of the apprehensive persuasion1, I was reluctant to make large changes for fear of unwittingly introducing bugs. After vacillating for a while2, I turned to visual regression testing to establish a reliable baseline for such refactoring efforts.

Fortunately, I had vague recollections of past research and quickly rediscovered Playwright’s built-in visual comparison. Playwright itself is also light on dependencies.

Setup

The recommended setup with npm init playwright@latest didn’t sit well with my minimalist taste (unnecessary sample files and excessive boilerplate while employing CommonJS instead of ESM), so I set everything up from scratch instead.

In this case, I expect snapshot testing to only be used on rare occasions, so I wanted to isolate everything in a dedicated folder test/visual; that will be our working directory from here on out.

{
    "scripts": {
        "test": "playwright test",
        "report": "playwright show-report",
        "update": "playwright test --update-snapshots",
        "reset": "rm -r ./playwright-report ./test-results ./viz.test.js-snapshots || true"
    },
    "devDependencies": {
        "@playwright/test": "^1.49.1"
    }
}

package.json

With that in place, npx playwright install serves to download a range of headless browsers.

Playwright then needs a configuration file to define our test environment:

import { defineConfig, devices } from "@playwright/test";

let BROWSERS = ["Desktop Firefox", "Desktop Chrome", "Desktop Safari"];
let BASE_URL = "http://localhost:8000";
let SERVER = "cd ../../dist && python3 -m http.server";

let IS_CI = !!process.env.CI;

export default defineConfig({
    testDir: "./",
    fullyParallel: true,
    forbidOnly: IS_CI,
    retries: 2,
    workers: IS_CI ? 1 : undefined,
    reporter: "html",
    webServer: {
        command: SERVER,
        url: BASE_URL,
        reuseExistingServer: !IS_CI
    },
    use: {
        baseURL: BASE_URL,
        trace: "on-first-retry"
    },
    projects: BROWSERS.map(ua => ({
        name: ua.toLowerCase().replaceAll(" ", "-"),
        use: { ...devices[ua] }
    }))
});

playwright.config.js

Here we expect our static website to already reside within the root directory’s dist folder and to be served at localhost:8000 (see SERVER; I prefer Python because that’s universally available). I’ve included multiple browsers for illustration purposes, but we might trim this down to speed things up a bit. Similarly, continuous integration is YAGNI for my scenario, so the whole IS_CI dance could be discarded.

Capture and Compare

Let’s turn to the actual tests, starting with a minimal sample:

import { test, expect } from "@playwright/test";

test("home page", async ({ page }) => {
    await page.goto("/");
    await expect(page).toHaveScreenshot();
});

sample.test.js

npm test now executes this little test suite (based on filename conventions). The initial run always fails because it first needs to create baseline snapshots against which subsequent runs compare their results. Invoking npm test once more should report a passing test.

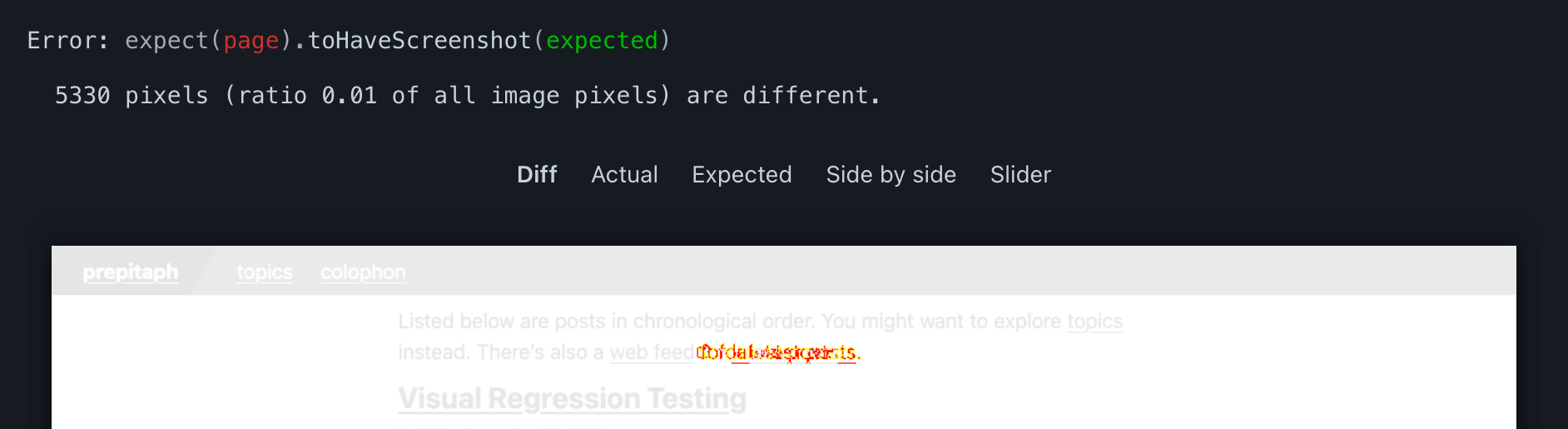

Changing our site, e.g. by recklessly messing with CSS within dist, should then make the test fail again. Such failures will offer various options to compare expected and actual visuals:

We can also inspect those baseline snapshots directly: Playwright creates a folder for screenshots named after the test file (sample.test.js-snapshots in this case), with file names derived from the respective test’s title (e.g. home-page-desktop-firefox.png).

Generating Tests

Going back to our original motivation, what we actually want is a test for every page. Instead of arduously writing and maintaining repetitive tests, we’ll create a simple web crawler and have tests generated automatically; one for each URL we’ve identified.

Playwright’s global setup enables us to perform some preparatory work before test discovery begins: Determine those URLs and write them to a file. Afterwards we can dynamically generate our tests at runtime.

Site Map

The first step is to extend our configuration by inserting globalSetup and exporting two of our configuration values:

export let BROWSERS = ["Desktop Firefox", "Desktop Chrome", "Desktop Safari"];
export let BASE_URL = "http://localhost:8000";

// …

export default defineConfig({
    // …
    globalSetup: require.resolve("./setup.js")
});

playwright.config.js

We can now reuse those exported values within setup.js, which spins up a headless browser to crawl our site (just because that’s easier here than using a separate HTML parser):

import { BASE_URL, BROWSERS } from "./playwright.config.js";
import { createSiteMap, readSiteMap } from "./sitemap.js";
import playwright from "@playwright/test";

export default async function globalSetup(config) {
    // only create site map if it doesn't already exist
    try {
        readSiteMap();
        return;
    } catch(err) {}

    // launch browser and initiate crawler
    let browser = playwright.devices[BROWSERS[0]].defaultBrowserType;
    browser = await playwright[browser].launch();
    let page = await browser.newPage();
    await createSiteMap(BASE_URL, page);
    await browser.close();
}

setup.js

This is fairly boring glue code; the actual crawling is happening within sitemap.js:

createSiteMap determines URLs and writes them to disk.
readSiteMap merely reads any previously created site map from disk. This will be our foundation for dynamically generating tests. (We’ll see later why this needs to be synchronous.)

Fortunately we can rely on prepitaph’s topics page to provide a comprehensive index of all pages, so our crawler just needs to collect unique local URLs from that page:

function extractLocalLinks(baseURL) {
    let urls = new Set();
    let offset = baseURL.length;
    for(let { href } of document.links) {
        if(href.startsWith(baseURL)) {
            let path = href.slice(offset);
            urls.add(path);
        }
    }
    return Array.from(urls);
}

We’ll need a bit more boring glue code to make that work:

import { readFileSync, writeFileSync } from "node:fs";
import { join } from "node:path";

let ENTRY_POINT = "/topics";
let SITEMAP = join(__dirname, "./sitemap.json");

export async function createSiteMap(baseURL, page) {
    await page.goto(baseURL + ENTRY_POINT);
    let urls = await page.evaluate(extractLocalLinks, baseURL);
    let data = JSON.stringify(urls, null, 4);
    writeFileSync(SITEMAP, data, { encoding: "utf-8" });
}

export function readSiteMap() {
    try {
        var data = readFileSync(SITEMAP, { encoding: "utf-8" });
    } catch(err) {
        if(err.code === "ENOENT") {
            throw new Error("missing site map");
        }
        throw err;
    }
    return JSON.parse(data);
}

function extractLocalLinks(baseURL) {
    /* … */
}

sitemap.js

The interesting bit here is that extractLocalLinks is evaluated within the browser context – thus we can rely on DOM APIs, notably document.links – while the rest is executed within the Playwright environment (i.e. Node).

Tests

Now that we have our list of URLs, we basically just need a test file with a simple loop to dynamically generate corresponding tests:

for(let url of readSiteMap()) {
    test(`page at ${url}`, async ({ page }) => {
        await page.goto(url);
        await expect(page).toHaveScreenshot();
    });
}

(This is why readSiteMap had to be synchronous above: Playwright doesn’t currently support top-level await within test files.)

In practice, we’ll want better error reporting for when the site map doesn’t exist yet:

import { readSiteMap } from "./sitemap.js";
import { test, expect } from "@playwright/test";

let sitemap = [];
try {
    sitemap = readSiteMap();
} catch(err) {
    test("site map", ({ page }) => {
        throw new Error("missing site map");
    });
}

for(let url of sitemap) {
    test(`page at ${url}`, async ({ page }) => {
        await page.goto(url);
        await expect(page).toHaveScreenshot();
    });
}

viz.test.js

Getting here as a bit of a journey, but we’re pretty much done … unless we have to deal with reality; that typically takes a bit more tweaking.

Exceptions

Because visual testing is inherently flaky, we sometimes need to compensate via special-casing. Playwright lets us inject custom CSS, which is often the easiest and most effective approach:

// …
import { join } from "node:path";

let OPTIONS = {
    stylePath: join(__dirname, "./viz.tweaks.css")
};

// …
        await expect(page).toHaveScreenshot(OPTIONS);
// …

viz.test.js

main a:visited {
    color: var(--color-link);
}

/* suppress randomness */
iframe[src$="/articles/signals-reactivity/demo.html"] {
    visibility: hidden;
}

/* suppress flakiness */
body:has(h1 a[href="/wip/unicode-symbols/"]) {
    main tbody > tr:last-child > td:first-child {
        font-size: 0;
        visibility: hidden;
    }
}

viz.tweaks.css

Page vs. Viewport

At this point everything seemed hunky-dory – until I realized that my tests weren’t failing after I had changed some styling. That’s not good!

What I hadn’t taken into account is that .toHaveScreenshot only captures the viewport rather than the entire page. We can rectify that by again extending our configuration and then adjusting our test-generating loop:

export let WIDTH = 800;
export let HEIGHT = WIDTH;

// …
    projects: BROWSERS.map(ua => ({
        name: ua.toLowerCase().replaceAll(" ", "-"),
        use: {
            ...devices[ua],
            viewport: {
                width: WIDTH,
                height: HEIGHT
            }
        }
    }))

playwright.config.js

import { WIDTH, HEIGHT } from "./playwright.config.js";

// …

for(let url of sitemap) {
    test(`page at ${url}`, async ({ page }) => {
        checkSnapshot(url, page);
    });
}

async function checkSnapshot(url, page) {
    // determine page height with default viewport
    await page.setViewportSize({
        width: WIDTH,
        height: HEIGHT
    });
    await page.goto(url);
    await page.waitForLoadState("networkidle");
    let height = await page.evaluate(getFullHeight);

    // resize viewport for before snapshotting
    await page.setViewportSize({
        width: WIDTH,
        height: Math.ceil(height)
    });
    await page.waitForLoadState("networkidle");
    await expect(page).toHaveScreenshot(OPTIONS);
}

function getFullHeight() {
    return document.documentElement.getBoundingClientRect().height;
}

viz.test.js

Note that we’ve also introduced a waiting condition, holding until there’s no network traffic for a while in an attempt to account for stuff like lazy-loading images.

Be aware that capturing the entire page is more resource-intensive and doesn’t always work reliably: You might have to deal with layout shifts or run into timeouts for long or asset-heavy pages.
